Taiwan Semiconductor introduces its next-generation automotive-grade planar Schottky diodes, engineered for demanding automotive environments and supporting a maximum junction temperature (TJ) up to 175°C. This product family features low leakage current and a forward current range of 1A to 10A in various package options and is AEC-Q101 qualified.
Key Features
- AEC-Q101 qualified
- Maximum junction temperature TJ 175°C
- High surge current capability
- Low power loss, high efficiency
- Moisture sensitivity level: level 1, per J-STD-020
- RoHS Compliant
- Halogen-free
Applications
- DC/DC converter
- Freewheeling diodes
- Reverse battery protection
- Car lighting

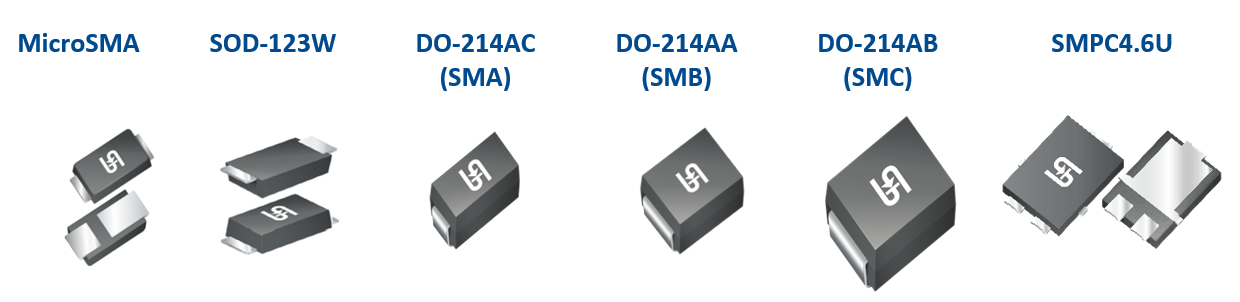

Product Portfolio
| Part Number | Package | IF | VR | TJ 25°C | TJ 125°C | TJ 25°C | TJ 125°C | TJ 25°C | ||
| Max. (A) | Min. (V) | VF Typ. (V) | VF Max. (V) | VF Typ. (V) | VF Max. (V) | IR Max. (μA) | IR Max. (mA) | IFSM Max. (A) | ||
| SSU1H40H | Micro SMA | 1 | 40 | 0.54 | 0.59 | 0.45 | 0.49 | 10 | 2 | 40 |
| SSA1H40H | DO-214AC (SMA) | 1 | 0.54 | 0.6 | 0.45 | 0.5 | 30 | 5 | 70 | |
| SSB1H40H | DO-214AA (SMB) | 1 | 0.54 | 0.6 | 0.45 | 0.5 | 30 | 5 | 70 | |
| SSA2H40H | DO-214AC (SMA) | 2 | 0.62 | 0.66 | 0.53 | 0.56 | 30 | 5 | 70 | |
| SSB2H40H | DO-214AA (SMB) | 2 | 0.62 | 0.66 | 0.53 | 0.56 | 30 | 5 | 70 | |
| SSW2H40H | SOD-123W | 2 | 0.62 | 0.66 | 0.53 | 0.56 | 30 | 5 | 70 | |
| SSA3H40H | DO-214AC (SMA) | 3 | 0.56 | 0.6 | 0.48 | 0.51 | 30 | 5 | 100 | |
| SSB3H40H | DO-214AA (SMB) | 3 | 0.56 | 0.6 | 0.48 | 0.51 | 30 | 5 | 100 | |
| SSC3H40H | DO-214AB (SMC) | 3 | 0.56 | 0.6 | 0.48 | 0.51 | 30 | 5 | 100 | |
| SSC5H40H | DO-214AB (SMC) | 5 | 0.58 | 0.61 | 0.5 | 0.53 | 30 | 5 | 145 | |
| SSU1H60H | Micro SMA | 1 | 60 | 0.67 | 0.72 | 0.55 | 0.59 | 10 | 2 | 40 |
| SSA1H60H | DO-214AC (SMA) | 1 | 0.63 | 0.67 | 0.52 | 0.55 | 30 | 5 | 70 | |
| SSB1H60H | DO-214AA (SMB) | 1 | 0.63 | 0.67 | 0.52 | 0.55 | 30 | 5 | 70 | |
| SSA2H60H | DO-214AC (SMA) | 2 | 0.7 | 0.75 | 0.58 | 0.62 | 30 | 5 | 70 | |
| SSB2H60H | DO-214AA (SMB) | 2 | 0.7 | 0.75 | 0.58 | 0.62 | 30 | 5 | 70 | |
| SSW2H60H | SOD-123W | 2 | 0.7 | 0.75 | 0.58 | 0.62 | 30 | 5 | 70 | |
| SSA3H60H | DO-214AC (SMA) | 3 | 0.7 | 0.74 | 0.58 | 0.61 | 30 | 5 | 100 | |
| SSB3H60H | DO-214AA (SMB) | 3 | 0.7 | 0.74 | 0.58 | 0.61 | 30 | 5 | 100 | |
| SSC3H60H | DO-214AB (SMC) | 3 | 0.7 | 0.74 | 0.58 | 0.61 | 30 | 5 | 100 | |
| SSC5H60H | DO-214AB (SMC) | 5 | 0.72 | 0.75 | 0.6 | 0.63 | 30 | 5 | 145 | |
| SSA1H100H | DO-214AC (SMA) | 1 | 100 | 0.68 | 0.73 | 0.55 | 0.59 | 10 | 1 | 70 |
| SSB1H100H | DO-214AA (SMB) | 1 | 0.68 | 0.73 | 0.55 | 0.59 | 10 | 1 | 70 | |
| SSA2H100H | DO-214AC (SMA) | 2 | 0.76 | 0.8 | 0.61 | 0.64 | 10 | 1 | 70 | |
| SSB2H100H | DO-214AA (SMB) | 2 | 0.76 | 0.8 | 0.61 | 0.64 | 10 | 1 | 70 | |
| SSW2H100H | SOD-123W | 2 | 0.76 | 0.8 | 0.61 | 0.64 | 10 | 1 | 70 | |
| SSA3H100H | DO-214AC (SMA) | 3 | 0.74 | 0.8 | 0.61 | 0.66 | 10 | 1 | 100 | |
| SSB3H100H | DO-214AA (SMB) | 3 | 0.74 | 0.8 | 0.61 | 0.66 | 10 | 1 | 100 | |
| SSC3H100H | DO-214AB (SMC) | 3 | 0.74 | 0.8 | 0.61 | 0.66 | 10 | 1 | 100 | |
| SSUP5H100H | TO-277A (SMPC4.6U) | 5 | 0.75 | 0.8 | 0.61 | 0.65 | 10 | 5 | 150 | |
| SSUP8H100H | TO-277A (SMPC4.6U) | 8 | 0.77 | 0.85 | 0.63 | 0.69 | 5 | 2 | 215 | |
| SSUP10H100H | TO-277A (SMPC4.6U) | 10 | 0.77 | 0.81 | 0.64 | 0.67 | 10 | 3 | 255 | |
